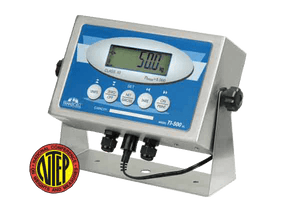

Transcell TI-500SL Weighing Indicator

Transcell TI-500SL Weighing Indicator

  • $635.00

The TI-500SL is a rugged, industrial, NTEP & Canadian Certified digital indicator housed in a NEMA 4X stainless steel enclosure. It comes with a large 0.8” backlit LCD screen for easy readout of up to 50,000 display divisions, and supplies enough current for up to 4-350Ω load cells. All setup parameters may be entered via the front panel keys. The TI-500SL uses full duplex RS-232 serial format for communication with many types of attached support equipment. The TI-500SL is configured with a rechargeable lead acid battery. An AC adapter is included for continuous power operation and to recharge the lead acid battery. An AC adaptor is included with this indicator.

• Full duplex RS-232 Serial Port - demand or continuous
• Stainless steel swivel stand
• Backlit LCD display
• Full front panel configuration
• Auto shutoff to extend battery life
• Displays up to 50,000 graduations
• Stainless steel NEMA 4x / IP65 enclosure
• Drives up to four Ω load cells
• Full front panel calibration
• Operates on AC adapter or rechargeable lead battery
• Auto weight capture for unstable and live loads
• Approximate 29 hour battery life
• Keyboard Functions: Units, Zero/Off, Net/Gross, Tare,
• Annunciators: Gross, Net, kg, lb, Center of Zero, Stable, Tare, Negative

 1-year limited warranty

Specifications:    User Manual:
