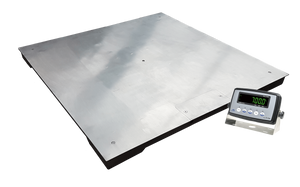

Themis HDSS-5000 4' X 4' Stainless Steel Floor Scale

  • $4,995.00

With its 4mm thick top plate and channel steel frame, the HDSS-5000 4X4 stainless steel floor scale is ideal for heavy washdown applications such as those found in the food, fish, pharmaceutical and chemical industries. Fitted with OIML and NTEP approved 2.5k alloy steel load-cells, the HDSS is also available with optional stainless steel load-cell for the harshest environments.

• 2,500 kg x 0.5 kg / 5,000 lb x 1 lb
• 1,000 kg x 0.2 kg / 2,200 lb x 0.5 lb

Platform Size:
• 122 cm x 122 cm / 48" x 48" x 3.5"

• 100% SUS 304 stainless steel construction with
polish finish top-plate and sand blast finish substructure
• Stainless steel signal cable protective sheath
• Reinforced corners
• Channel stainless steel substructure
• Top access closed junction box compartment
• Adjustable footings
Comes standard with Transcell TI700 IP67 weight indicator:
• Enclosure: Polycarbonate front with Durable ABS NEMA 4x back/ IP67
Display: Large, easy to read reverse LCD
• Backlight: Choose from 6 colours
• Units: Pounds (lb), Kilograms (kg)
• Annunciators: Net, Tare, Center of Zero, lb, kg, pcs, Stable
• Key Functions: Gross, Units, Zero/Off, Net/Gross, Tare, On/Print
• Applications: Piece Counting, Remote Display, Animal/Peak Hold, Checkweigher, Accumulation
• Stand: Heavy Duty Swivel Mounting Stand
• Internal Power Supply
• Serial Port: Full Duplex RS-232
• Programmable Print Format
• Gross/Net/Tare: Print Ticket Mode with 6 digit ID number
• Time / Date
• Operating Temperature --20℃ to 40℃
• Power (Standard) 100-240 VAC

• 1-year warranty

TI-700 Indicator:     HDSS:
