Rice Lake RoughDeck QC Quick Clean Floor Scale

Rice Lake RoughDeck QC Quick Clean Floor Scale

  • $8,925.00

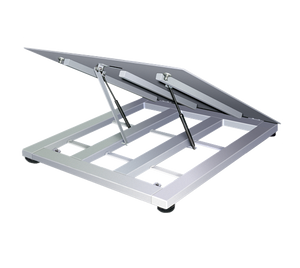

The RoughDeck QC is a hostile environment, stainless steel floor scale customized for food, chemical and other demanding washdown applications. The RoughDeck QC’s exclusive gas-shock design provides easy lifting and soft closing of the 3/16 inch top plate. Also included is a manual drop-in-place support bar for use during extended underdeck cleaning.

Dimensions and Capacity:
• 48" x 48" x 3.5 inches - 1,000 to 2,500 kg / 2,000 to 5,000 lb
• 48" x 48" x 4.5 inches - 5,000 kg / 10,000 lb
• 48" x 60" x 3.5 inches - 1,000 kg / 2,000 lb
• 48" x 60" x 4.5 inches - 2,500 to 5,000 kg / 5,000 to 10,000 lb

Features:
•
Rugged washdown design
• Smooth, 304 stainless steel top deck
• Rigid 304 stainless steel tube frame
• Manual drop-in-place safety bar
• Four stainless steel, welded seal IP67, shear-beam load cells
• 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
• Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
• 3/16 in thick smooth top plate
• 4 adjustable stainless steel SUREFOOT™ support feet
