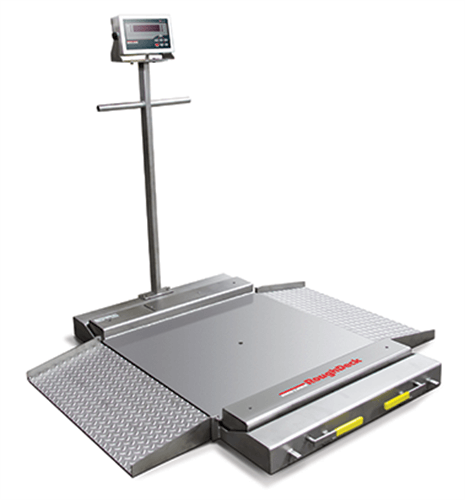

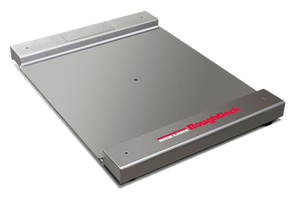

Rice Lake RoughDeck BDP Stainless Steel Barrel Drum Scale

  • $5,995.00


When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck® BDP floor scales' low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

Capacity:
• 500 kg to 1,250 kg / 1,000 lb to 2,500 lb

Platform Size:
• 30" x 31" / 76.2 cm x 78.7 cm
• 36" x 37" / 91.4 cm x 94.0 cm

Features:
•
Live siderails
• Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
• Four adjustable stainless steel SUREFOOT™ support feet
• TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
• Alloy steel load cells
• Smooth top plate
• Stainless steel load cells or contact us for optional stainless steel with welded-seal (IP67) load cells​

Warranty:
3-year limited warranty

Downloads:
Specifications:    User Manual:
