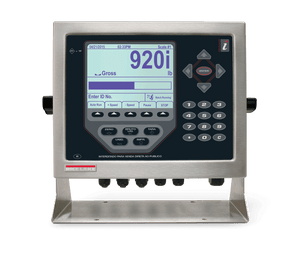

Rice Lake 920i Programmable Weighing Indicator

  • $3,195.00


The 920i® programmable weight indicator/controller is different, yet intuitively familiar for even the least experienced operators. It is truly the first of its kind to blend revolutionary user interfaces, total flexibility and ultimate processing performance with the simplicity of a basic weight indicator. We have taken the best features from weight instruments, PLCs and computers and added more robust electronics, a crisp graphical display and programmable softkeys. Put it all together inside a virtually indestructible enclosure and you have one of the most advanced HMIs the industry has ever seen.

Default Model: Indicator,920i Universal ASSY 115VAC Single Channel

Please consult for advanced options and configurations.


Standard Features:
• Large 4.6" W x 3.4" H, 320 x 240 pixel back-lit LCD graphical display
• Display up to four scale channels with required Legal for Trade information per screen
• Five displayed softkeys with 10 user-defined and 14 preset functions per screen
• Selectable A/D measurement rate up to 960/second
• Power for (16) 350 Ω load cells per A/D board
• Peak hold, rate of change
• Audit trail tracking and alibi storage
• Multiple range/interval weighing
• Four bidirectional communication ports
• Local/remote keypress operation
• Operator prompts/256 widgets
• Multiple screens (program control)
• Eight onboard databases
• Six onboard digital I/O
• 100 configurable setpoints, 30 types
• Two onboard option card slots
• 1,000-ID truck registers for in/out weighing
• Programmable ticket formats 20 auxiliary print formats
• ESP event-driven processing
• User programmable 128 K flash memory
• iQUBE2® connectivity
• 32 individual scale accumulators
• NEMA Type 4X/IP66 stainless steel enclosure
• PS/2 or USB keyboard port for data entry

Warranty:
2-year limited warranty

Downloads:
Specifications:    User Manual:
