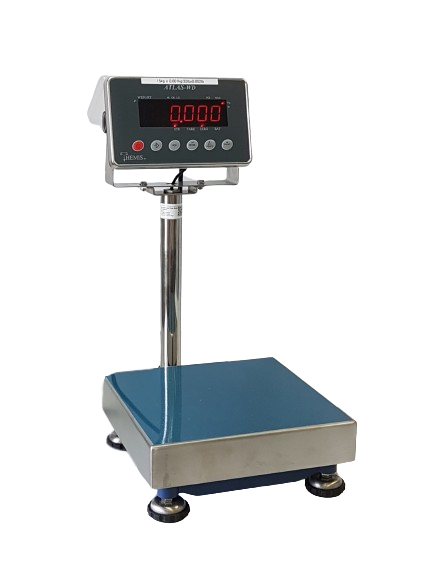

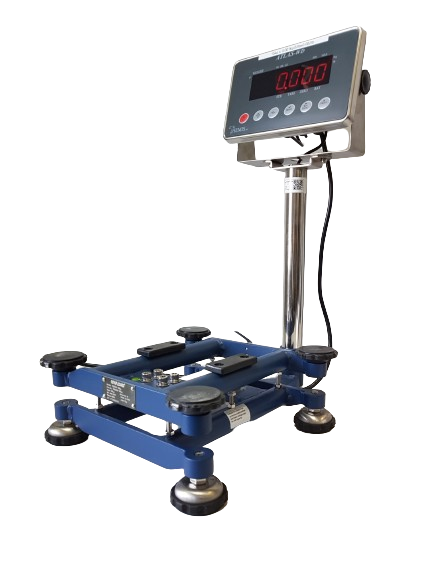

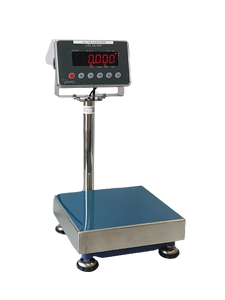

ATLAS-WD Mild Steel Bench Scales

  • $845.00


Anyload TN series bench scales are manufactured with a heavy gauge mild steel and have a heavy gauge stainless steel pan. The TN series bench scales are supplied with aluminum load cells that are NTEP 1:4000 Class III, Single Cell certified from 200 kg - 400 kg as well as CE and RoHs certified.

Model Capacity Precision Dimensions
TN3030 15, 25, 50 kg 2, 5, 10 g 30 x 30 cm / 11.8" x 11.8"
TN4050 50, 100 kg 10, 20 g 40 x 50 cm / 15.7" x 19.7"
TN4646 50, 100 kg 10, 20 g 46 x 46 cm / 18.1" x 18.1"
TN4660 50, 100, 250 kg 10, 20, 50 g 46 x 60 cm / 18.1" x 23.6"
TN6060 100, 250 kg 20, 50 g
60 x 60 cm / 23.6" x 23.6"


Features:
Heavy gage stainless steel pan
 Heavy gauge mild steel construction
 Level bubble
 Bracket, column and column holder included
Breaking Overload: 150% of full scale

Comes standard with Atlas-WD IP67 indicator:
• Large, easy to read 1.0”, 6-Digit Red LED display
• Stainless Steel NEMA 4x / IP67 enclosure
• Heavy Duty Swivel indicator bracket
• Annunciators: Zero, Tare, Gross, Tare, lb, kg, Stable, Net, Pieces
• Key Functions: Zero, Net/Gross, Tare, Units, Print
• Gross/Net/Tare - Print
• Optional RS-232 Serial cable
• Special applications: counting, checkweighing and animal weighing functions
• Internal power supply 110/220 VAC, 50/60 H

Warranty:
• 1-year limited warranty applies

Downloads:
TN:    ATLAS-WD
