Anyload FSP-SS Stainless Steel Legal Floor Scales

  • $5,595.00

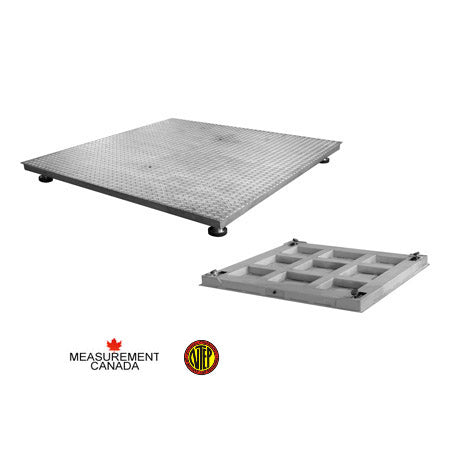

ANYLOAD FSP-SS-S4 stainless steel floor scales are engineered with a symmetrical grid rigid steel channel frame and checkered 4mm thick deck plate with rugged diamond saftey tread. The FSP-SS-S4 floor scale is a 17-4PH and 304 Stainless steel heavy duty design and is ideal for industrial and commercial environments due to the durability provided by the structural support of the channel frame and safety benefits of the slip and skid resistant checkered surface. FSP-SS-S4 floor scales include ANYLOAD stainless steel load cells adjustable stainless steel feetand a built-in stainless steel junction box. Additional design features include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for facilities that need to frequently move the location of the floor scale and need to facilitate the scale levelling. ANYLOAD floor scales are covered under warranty for a period of 3 years and are available in standard as well as custom sizes.

Model Capacity Precision Dimensions
FSP3X3-SS 2,500 kg / 5,000 lb 0.5 kg / 1 lb 91 x 91 cm / 36" x 36"
FSP4X4-SS 2,500 kg / 5,000 lb 0.5 kg / 1 lb 122 x 122 cm / 48" x 48"
FSP5X5-SS 2,500 kg / 5,000 lb 0.5 kg / 1 lb 150 x 150 cm / 59" x 59"

Features:
• 17-4PH & 304 Stainless steel heavy-duty industrial design
• 4mm thick deck plate with checkered safety tread
• Rigid steel channel frame
• Pre-corner error adjustment
• Threaded eyebolt holes for easy lifting (eyebolts included)
• Installed with:
*4 high accuracy IP68 alloy steel shear beam load cells (563YS) (OIML MAA C6, Y=8,500 and NTEP 1:6000 Class Ⅲ, Multiple Cell)
*4 swiver mild steel feet with removable rubber base (AMFSS-S4-1/2)
*1 IP68 stainless steel 4-way junction box (J04ES-FS)
*2 eyebolts
*Level bubble

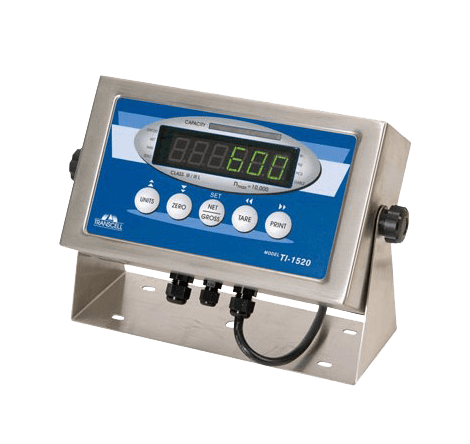

Comes with Transcell TI-1520 Indicator:
• Large, easy to read 1.0”, 6-Digit Green LED display
• Stainless Steel NEMA 4x / IP65 enclosure
• Heavy Duty Swivel indicator bracket
• Annunciators: Zero, Tare, Gross, Tare, lb, kg, Stable, Net, Pieces
• Key Functions: Zero, Net/Gross, Tare, Units, Print
• Programmable print format
• Gross/Net/Tare - Print Ticket Mode with 6 digit ID number
• Time / Date standard
• Full Duplex RS-232 Serial Port
• Special applications: Piece Counting, Remote Display, Peak Hold
• Internal power supply 110/220 VAC, 50/60 Hz

Approvals: (only 5Klb models are approved)
 AM-5833
 17-130A1

Downloads:
FSP-SS:   TI-1520:
