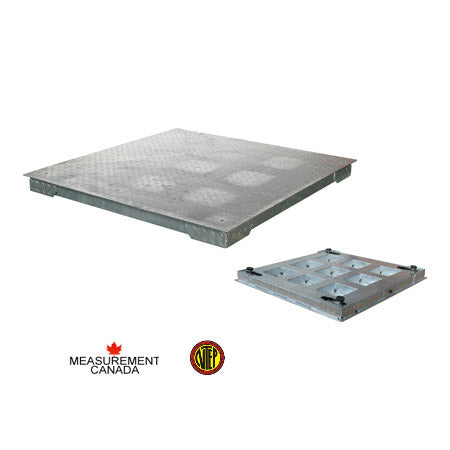

Anyload FSP-GI Galvanized Mild Steel Legal Floor Scales

  • $3,195.00


ANYLOAD FSP-GI legal for trade hot dip galvanized mild steel floor scales are engineered with a symmetrical grid channel frame and checkered deck plate with rugged diamond safety tread. The FSP-GI floor scale is a heavy-duty industrial design and is ideal for industrial and commercial environments due to the durability provided by the structural support of the channel frame and safety benefits of the slip and skid resistant checkered surface. FSP-GI floor scales include ANYLOAD alloy steel load cellsadjustable alloy steel feet and a built-in junction box. Additional design features include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for facilities that need to frequently move the location of the floor scale and need to facilitate the scale leveling.

Capacity:
• 2,500 kg x 0.5 kg / 5,000 lb x 1 lb

Platform Size:
•
122 cm x 122 cm / 48" x 48"

Features:
• Hot dip galvanized mild steel construction
• 5mm thick deck plate with checkered safety tread
• Rigid steel channel frame construction
•
Symmetrical grid channel frame
• Pre-corner error adjustment
•
Threaded eyebolt holes for easy lifting (eyebolts included)
•
Installed with:
*4 high accuracy IP67 alloy steel shear beam load cells (563YH) (OIML MAA C6, Y=8,500 and NTEP 1:5000 Class Ⅲ, Multiple Cell)
*4 swiver mild steel feet with removable rubber base (AMF-F-1/2)
*1 IP67 aluminum 4-way junction box (J04EA-16)
*2 eyebolts
*Level bubble

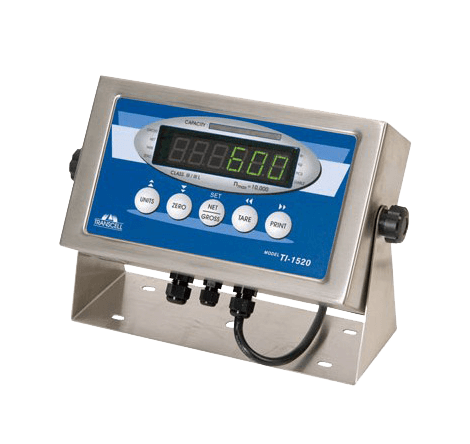

Comes with Transcell TI-1520 Indicator:
• Large, easy to read 1.0”, 6-Digit Green LED display
• Stainless Steel NEMA 4x / IP65 enclosure
• Heavy Duty Swivel indicator bracket
• Annunciators: Zero, Tare, Gross, Tare, lb, kg, Stable, Net, Pieces
• Key Functions: Zero, Net/Gross, Tare, Units, Print
• Programmable print format
• Gross/Net/Tare - Print Ticket Mode with 6 digit ID number
• Time / Date standard
• Full Duplex RS-232 Serial Port
• Special applications: Piece Counting, Remote Display, Peak Hold
• Internal power supply 110/220 VAC, 50/60 Hz

Approvals: (only 5Klb models are approved)
 AM-5833
 17-130A1

Downloads:
FSP-GI:   TI-1520:
