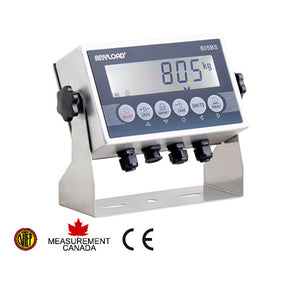

Anyload 805BS Digital Weight Indicator

The ANYLOAD 805BS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805BS has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and can drive up to eight 350Ω or sixteen 700Ω load cells through a junction box. With a SS304 stainless steel wash down enclosure, the 805BS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and is NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.

Features:
• NTEP III/IIIL, 10 000 approved
• Measurement Canada III, 10 000; III HD 20 000
• Material: Stainless steel SS304
• IP Rating: IP66
• LCD 6-digit display
• Power Supply: External AC adaptor or rechargeable lithium batteries 7.4V/4000mA
• Parameter and calibration settings are performed on the front panel
• Units of Measurement: kg, lb, g, oz, lb:oz conversion
• Improper operation and fault indication
• Two way relay signal output
• Equipped with RS-232 and RS-485 connecting ports
• Print functions with programmable print format
• Serial print interface
• Built-in clock
• Functions:Auto Zero Scale, Auto Zero Tracking, PEAK, COUNT, Zero Scale, TARE, GROSS/NET
• Password Function to provide easy method in adjusting the parameter settings without opening the back panel. Applicable only if legal for trade is not required

Approvals:
 AM-5779
 10-039A1
