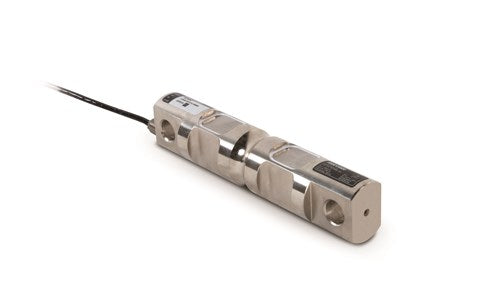

Rice Lake RL72020 Double-Ended Beam Load Cell

  • $1,075.00


The RL72020 is an alloy steel, double-ended beam load cell ideal for truck, tank and hopper applications. The RL72020 is available in capacities of 5,000 to 250,000 lb and is complete with 30 ft of load cell cable.

Ideal for fertilizer, tank and hopper applications, the RL72020P is a painted alloy steel, double-ended beam load cell. Capacities range from 5,000 to 250,000 lb and the RL72020P comes with 30 ft of load cell cable.

The RL72020SS is a stainless steel, double-ended beam load cell with an environmental seal and Legal for Trade NTEP Certification. Available in capacities of 10,000 to 100,000 lb, the RL72020SS is complete with 30 ft of cable.


Features:
• Option of:
-High-alloy steel, nickel plated finish
-Painted High-alloy steel, nickel plated finish
-Stainless steel finish
• Environmentally sealed, IP67
• 150% full scale safe overload
• 30 ft cable
• Two-year limited warranty
• NTEP 21-064
• FM approved

Downloads:
Alloy steel:    Painted:   Stainless steel:
